Plastic auxiliary machinery

  • Single-plate hydraulic screen changer

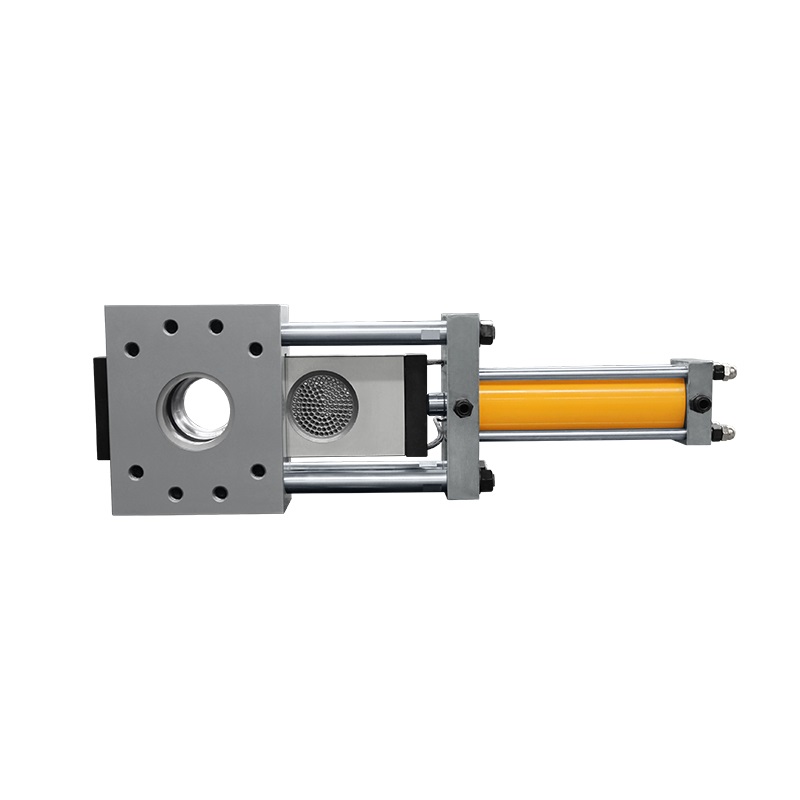

Single-plate hydraulic screen changer

Single-plate hydraulic screen changer

  • Pressure control system
  • Filtration area diameter ra at high temperature≤300℃nges from ø70-ø320
  • Can work at high temperature≤300℃
  • Can work at high pressure 25MPa-30MPa
  • Product description: The flow channel geometry of the FSC hydraulic screen changer has no dead spots, enabling a leak-free mode of operation for filtration systems.
  • INQUIRY

Single-plate hydraulic screen changer

It is composed by one plate with 2 pieces filter screen,  which can move in one second to achieve screen changing process quickly and smoothly. It is a highly cost effective and widely used quick and non-stop screen changer.

Features

1. adopt overall structure, having small size and short flow channel, can be suitable for different standards of extruders.

2. pressure driven sealing technology, the seal gap can be compensated automatically to meet high extrusion production of any polymer material without stopping and leakage.

3. the double-station fast network changing time is lower than 2 seconds.

4. at high temperature and pressure condition, no effect with its performance.

Application

1.Granulation production

2. Pipe production (PE/PP/PPR, ETC. all kinds of plastic pipes, such as drain pipes, gas pipes, bellows, carbon  bellows, steel strip wound pipes, drip irrigation belts…)

3. Film blowing production

4. Production of plates and sheets

5. Production of hollow products

6. Production of cast film and cast film

Technical parameter


Type

Screen size

Heat power

(kw)

Capacity

(kg/h)

Dia(mm)

Area (cm2 )

GY-SP-70

70

38

3.5-5.8

75-120

GY-SP-100

100

78

4.5-6.8

130-350

GY-SP-120

120

113

5.2-7.2

200-550

GY-SP-150

150

176

6.5-8.5

350-800

GY-SP-180

180

254

7.6-9.5

450-1250

GY-SP-200

200

314

8.5-11

550-1500

GY-SP-250

250

490

9.5-12

800-2500

GY-SP-300

300

706

11.5-15.5

1200-3500

GY-SP-320

320

803

13-17.5

1500-4000

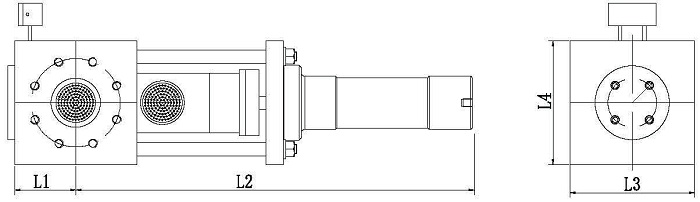

Note: If need detail dimension, please contact us to get.
