Extruder auxiliary machinery

  • Double plate hydraulic screen changer
Double plate hydraulic screen changer

Double plate hydraulic screen changer

  • Pressure control system
  • Filtration area diameter ranges from ø70-ø320
  • Can work at high temperature≤300℃
  • Can work at high pressure 25MPa-30MPa
  • Product description: Filtration systems and screen changers for industrial applications Filtration is a process that separates or cleans substances.The principles are applied in filters and screen changers for separation
  • INQUIRY

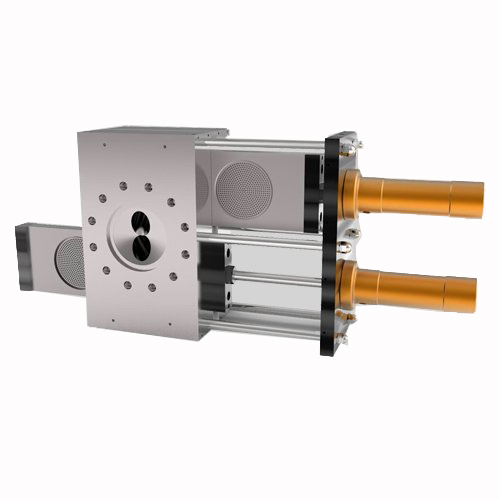

Double plate hydraulic screen changer

Double plate hydraulic screen changer, there are two plates, realizing one plate’s screens working with another one changing, without the continuous extrusion production. Every plate have two screens, so this type screen changer can keep double filtering areas, improve the filtration speed.

Features

1. suitable for kinds of polymer extrusion production

2. screen having flow and venting function

3. without stop production, it will not effect the production during screen changing, and no obvious fluctuation on extrusion, so greatly improve production stability and quality.

4. bear pressure of 25-30MPa

5. having unique sealing design

Applications

Pelletizing, pipe, sheet, plates, casting film, chemical fiber, blown film, flat film cutting grain line, recovery and so on.


Technical parameter

Type

Screen size

Heat power

(kw)

Capacity

(kg/h)

Dia(mm)

Area (cm2 )

GY-DP-80

80

50*2

7.2-10.2

300

GY-DP-100

100

78*2

9.6-12

500

GY-DP-120

120

113*2

12-14.4

800

GY-DP-150

150

176*2

14.4-18

1200

GY-DP-180

180

254*2

24-28.8

1500

GY-DP-200

200

314*2

27-31.8

2500

GY-DP-250

250

490*2

30-36

3700

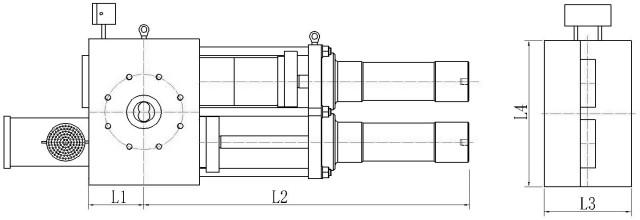

Note: If need detail dimension, please contact us to get.
