Plastic auxiliary machinery

  • Single piston continuous hydraulic screen changer
Single piston continuous hydraulic screen changer

Single piston continuous hydraulic screen changer

  • bear high pressure 50Mpa
  • continuous production
  • Product description: single piston screen changers with easy operation, uncomplicated screen changing and low pressure consumption for filtration systems.
  • INQUIRY

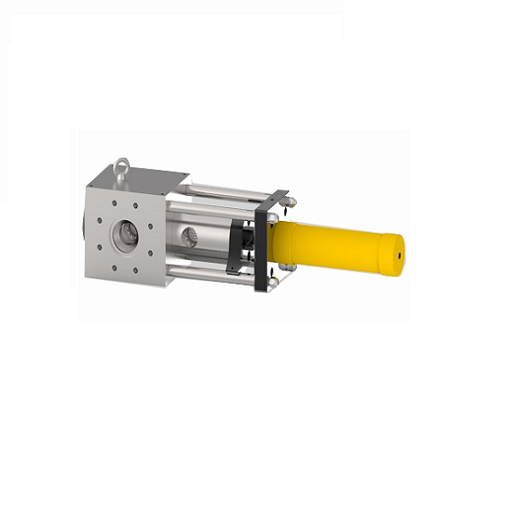

Single-piston continuous hydraulic screen changer

Single-piston continuous hydraulic screen changer is designed with two working station for alternately quick screen changing.It can bear high pressure and temperature with special processing method.


Application

Suitable for the production of  high pressure products, especially for blowing film, drawing wire, granulating and almost all thermoplastic plastics.

Features

1. adopt high performance steel and special processing and heat treatment technology, especially for high pressure production process design

2. integral design with high wear resistance, high voltage resistance and high precision

3. under the condition of pressure 40-50MPa and temperature 300-400 , the performance of screen changer will not be affected.

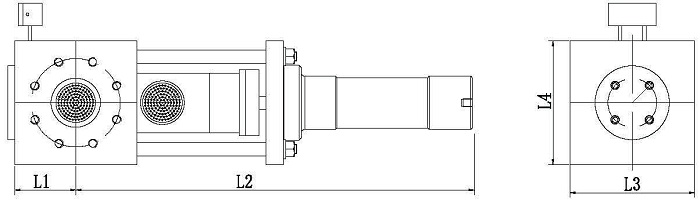

Technical parameter


Type

Screen size

Heat power

(kw)

Capacity

(kg/h)

Dia(mm)

Area (cm2 )

GY-SC-100

80

50

2-3.2

150

GY-SC-120

100

78

2.4-4

260

GY-SC-145

125

123

2.8-4.8

380

GY-SC-170

150

176

4-6.4

600

GY-SC-195

175

240

6.4-8

820

GY-SC-220

200

314

8-11.2

1300

GY-SC-250

230

415

12.8-16

2000
