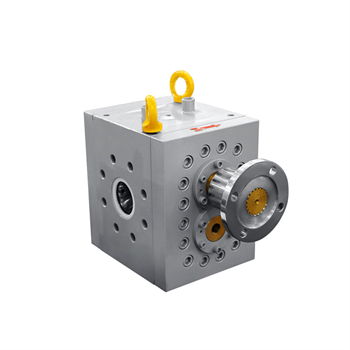

melt pump for plastic extruion


Melt pump is used on extruder for transporting and metering high temperature and viscosity polymer melt ; at the same time, increase and stabilize the pressure of  material from extruder then transport to die. Its capacity of stabilizing and metering kinds of plastics is better than kinds of extrusion. Melt pump also called metering pump, extrusion pump, gear pump, it is widely used  in extrusion molding in plastic, resin, rubber industry. Now granulation, film, pipe, plate, sheet, and other industries; melt pump is the essential part of extrusion equipment, applied in PP, PS, PET, PVC, ABS, PE, PA, rubber, and etc.

Melt pump belongs to positive displacement gear pump, there is a pair of cylindrical gear with external teeth relative rotation to transport high viscosity melt fluids. There are  straight tooth, helical tooth and herringbone tooth, three types of tooth to choose from. Every pair of gear is finished and assembled accurately to get precise flow rate. According to different extrusion situation, the pump and gear will do special disposition.Rubber Melt Pump

Pump  parameter

Pump models: 0.5CC-2000CC

Pump material: carbon steel and stainless steel 304/316/other required tool steel

Pump heating method: heater or conduction oil heating

Working temperature: 400

Clearing temperature: 450

Input pressure: 12Mpa

Output pressure: 45Mpa

Max pressure difference: 25Mpa

Material viscosity: 40000Pas

Melt pump advantages:

1. Stabilize the pressure of extruder from screw to die

2. Improve the product quality---- reduce the dimensional tolerance and waste, and then produce high precision product.

3. Improve the product quantity---reduce the pressure requirement to screw, from the original screw to mold head build pressure, change to melt pump to mold head build pressure, screw can increase the extrusion speed.

4. Reduce energy consumption per unit.

Technical parameters

Type

CC/Rev

Capacity

(L/H)

Heating power

(kw)

Driving power

(kw)

GY-5

5

2-15

1

1.1

GY-10

10

5-25

1

1.5

GY-20

20

10-50

2

2.2

GY-31.5

31.5

15-70

2

2.2

GY-50

50

25-100

3

4

GY-100

100

50-200

4

5.5

GY-150

150

70-300

5

7.5

GY-200

200

100-500

6

11

GY-250

250

125-600

8

15

GY-315

315

150-700

8

18.5

GY-500

500

250-1200

12

22

GY-800

800

400-1800

15

30

GY-1200

1200

600-2500

20

37

Note: If need detail dimension, please contact us to get.
